DM1017

DISC MOWERS

Call for Pricing

Extended Warranty

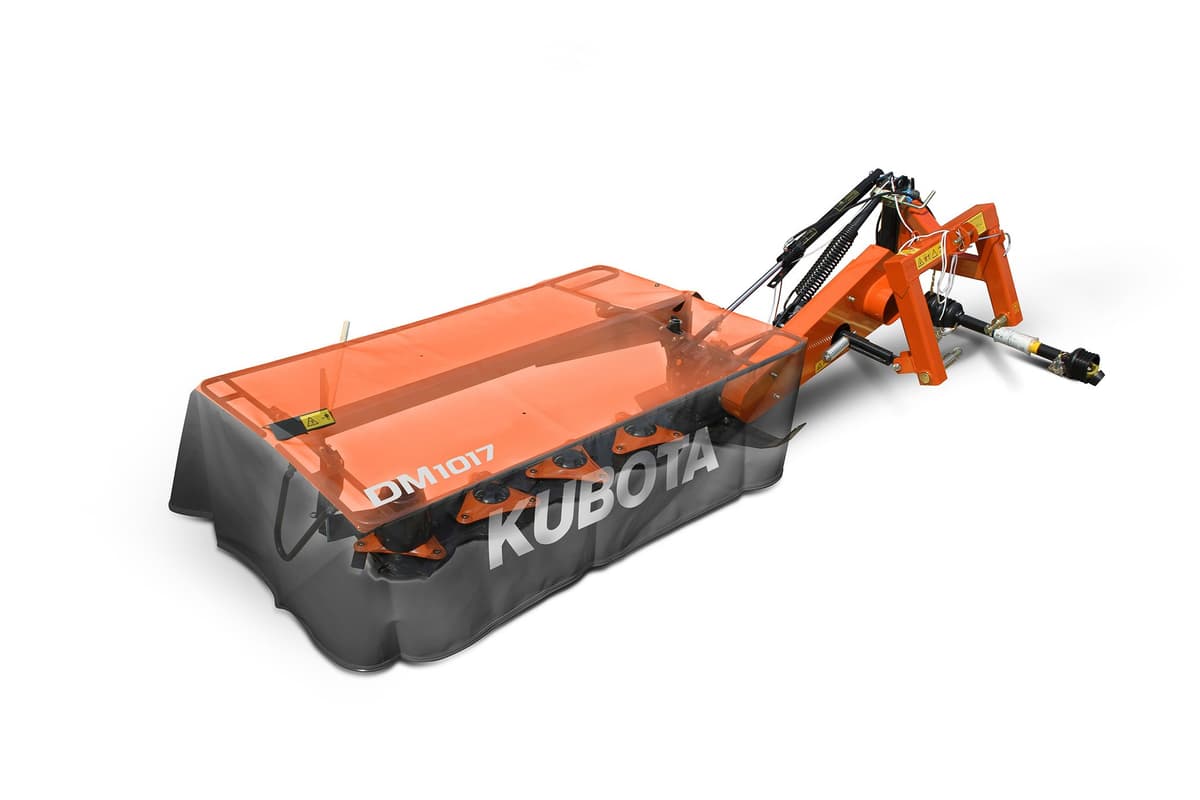

The Kubota DM1017 Disc Mower may be the smallest in its series, but it still brings a dominant 5’ 6” working width. The DM1017 is easy to lift and transport, and even avoids obstacles through spring loaded breakaway. Three bladed, counter rotating discs provide you with a constant cut, ensuring your hay production and mowing operations go off without a hitch. With a minimum 36 PTO horsepower required to operate the DM1017, you’re going to find it easy to get the results you’re searching for.

Special Offers

  • Implement Stand Alone Financing

    Stand Alone Financing Installment Program

    Implement Stand Alone Financing
  • Farmer Veteran Coalition Rebate

    Customer instant rebate for Farmer Veteran Coalition members.

    Farmer Veteran Coalition Rebate
  • DISC MOWER SERIES

    Up to 0% A.P.R. for 48 Months on your new Kubota DM Series!

    DISC MOWER SERIES
Fully Welded Cutterbar

Fully Welded Cutterbar

Kubota’s DM1000 Series features a heavy-duty Kubota cutterbar, which is designed with easy maintenance and quiet operation in mind. The fully welded Kubota cutterbar with overlapping C-channels makes for a very stiff and strong design, ensuring a high level of durability. The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.

Available Working Widths

Available Working Widths

  • DM1017 – 5’6”
  • DM1022 – 7’2”
  • DM1024 – 7’9”
Spring Loaded Breakaway

Spring Loaded Breakaway

When an obstacle is encountered, the DM1000 series swings backwards to protect the cutterbar; by reversing, the mower is reset into working position.

Fast Lift on Headlands

Fast Lift on Headlands

The mower is easily lifted via a hydraulic cylinder without activating the tractor’s 3-point linkage. This causes less wear on the tractor and the machine, as the PTO stays in the same position, minimizing vibrations in the transmission.

Vertical Transport Position

Vertical Transport Position

When in transport, the mowers are folded to a vertical position well behind the tractor. The center of gravity is close to the tractor, which ensures excellent weight distribution and transport stability.

Counter-Rotating Three-Bladed Discs

Counter-Rotating Three-Bladed Discs

With three blades per disc Kubota mowers are constantly cutting. This means a third less load per blade; an even load on the drive; smoother power usage; and produces an even, cleanly cut stubble.

DM1017

DM1017

HP

MSRP AS LOW AS

Call for Pricing

Specifications

Break Away

Standard

Cutterbar Operating Angle

-45/+15

Cutting Width Ft. (m)

5'6" (1.7)

High Skids +20/+40/+80 Mm

Optional

Hitch ( C A T)

2

Lighting Kit

Optional

Minimum P T O Horsepower Required H P/ K W

36/27

Non- Stop Break Away

N/A

Number Of Disc And Knives

4/12

Overrun Clutch

Standard

P T O R P M

540

Pin Hitch

Not Available

Remotes

1

Stubble Height In. (mm)

0.78"-1.97" (20-50)

Swath Board ( R H/ L H)

Standard/Optional

Swath Rollers ( R H/ L H)

Optional (RH)

Transport Width Ft. (m)

3' 9" (1.2)

Weight Lbs. (kg)

860 (390)
